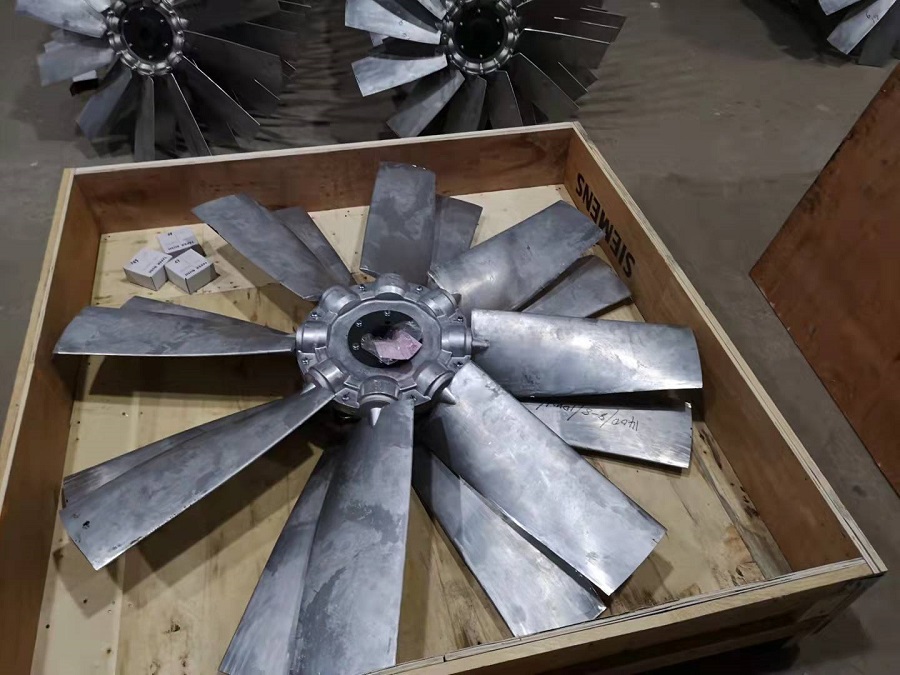

Textile Ventilation Impeller

Cast Aluminium Axial Fans and Impellers

Our cast aluminium (LM6 / A356) axial fans are light, strong and heat resistant, which makes them the usual choice for industrial axial fans and smoke exhaust duty. Blades are cast as a unit and can be crack-detected part by part, suited to continuous running and elevated temperatures.

The range covers Ø250mm to Ø3150mm across the ADF, ADT, APD, ARD, ABE, ADB and CAS series. Available as complete fans or as impellers supplied separately with performance curves.

Key specifications

Figures above are our standard ranges; the actual supply is per the agreed technical specification. Impeller performance curves describe the bare impeller under standard inlet conditions. Once installed, performance is affected by casing clearance, tip clearance, inlet straightening and guide vanes; tested as a complete fan to GB/T 1236 / AMCA 210 the result typically differs by 2-5%. Site measurement governs and no complete-fan performance warranty is implied.

Typical applications

• Industrial plant and workshop ventilation
• Smoke exhaust and make-up air systems
• Tunnel and underground ventilation
• Power, metallurgy and chemical process ventilation
• Ship engine room and cargo hold ventilation
• Cooling towers and air coolers
• Mining ventilation (with explosion-proof motor)
• Grain and textile light-industry ventilation

Selection notes

• Aluminium blades must not rub against a steel casing at speed - fit a wear ring for high-temperature or high-speed duty to protect the blade tips.
• Aluminium impellers wear in dusty or corrosive service; consider a wear-resistant treatment or steel blades for abrasive dust.
• Fan efficiency is not set by the impeller alone: inlet cone, collector and tip clearance all matter and should be designed together.
• Tell us early if the project needs smoke exhaust or explosion-proof certification, including the temperature/time curve required.

FAQ

Need a selection or a quotation? Send us air volume, total or static pressure (please state which), medium temperature and quantity, and we will reply within 24 hours. Contact details are at the foot of this page.
